It’s widely used in communication systems, cable TV, optical cable network systems and others by virtue of steady structure, good sealing performance and easy construction.
1 Overview
It’s widely used in communication systems, cable TV, optical cable network systems and others by virtue of steady structure, good sealing performance and easy construction.
2 Technical Index
|
Model No. |
SC-ATH096-07 |
Color |
Black |
|
Capacity |
96 cores |
Protection Level |
IP68 |
|
Material |
PC, PC+ABS,PP |
Inlet/outlet |
4+4 |
|
Dimension(MM) |
465*190*120 |
Sealing Method For Inlets |
Screw mechanical |
|
Inlet cable port |
Ф13,Ф15 |
Outlet cable port |
Ф13,Ф15 |
3 Features
3.1 The body is made of high quality engineering plastic with good strength;
3.2 With good waterproof design, the fiber optical splice closure can be applied into underground and aerial.

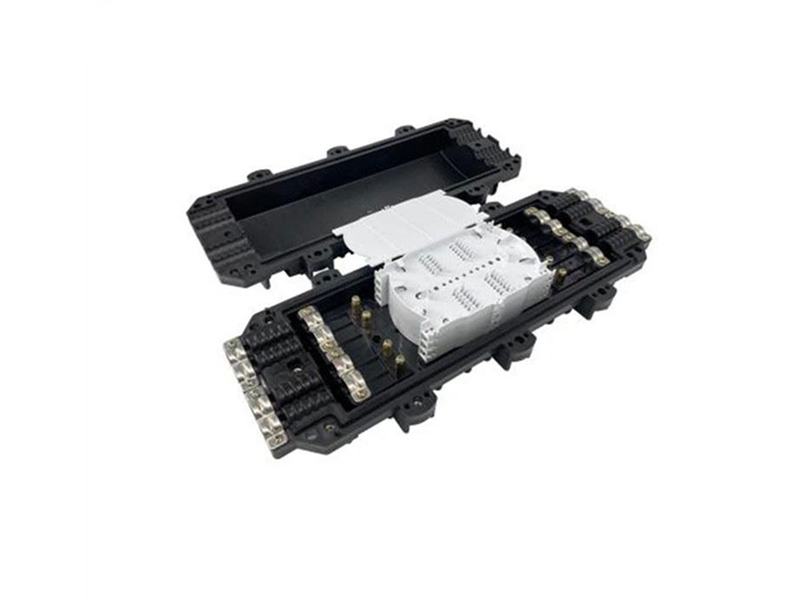

3.3 Be equipped with 4 splice trays (each capacity is 24 cores) (Pic#4 for details);
3.4 Excellent fiber routing design ensures the radius curvature of the fiber well and enough fiber storage space.

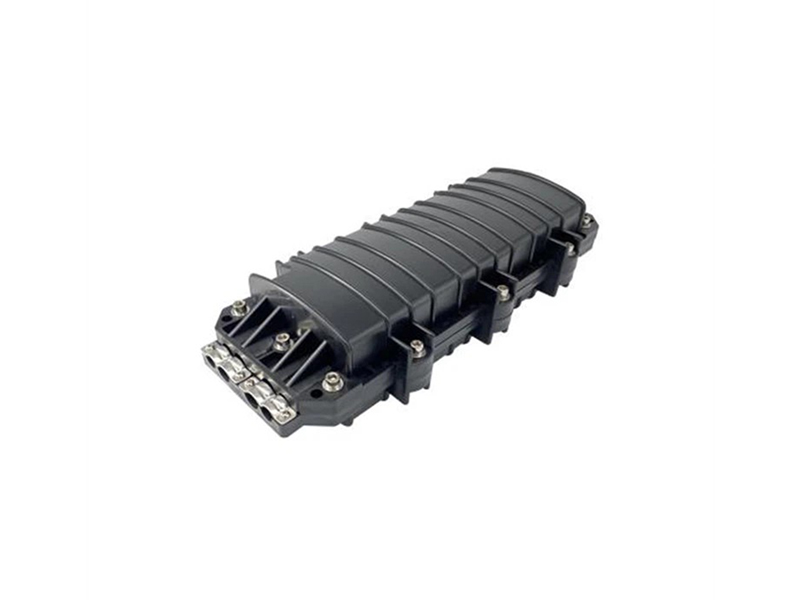

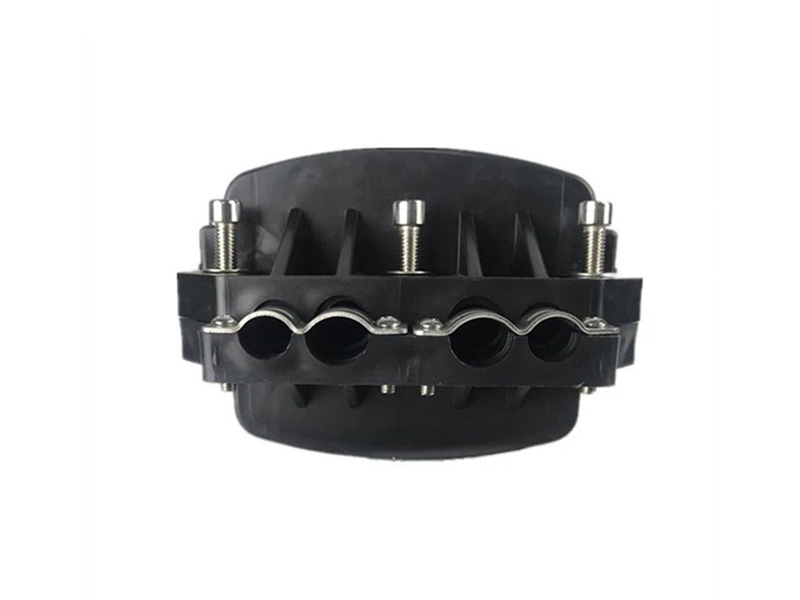

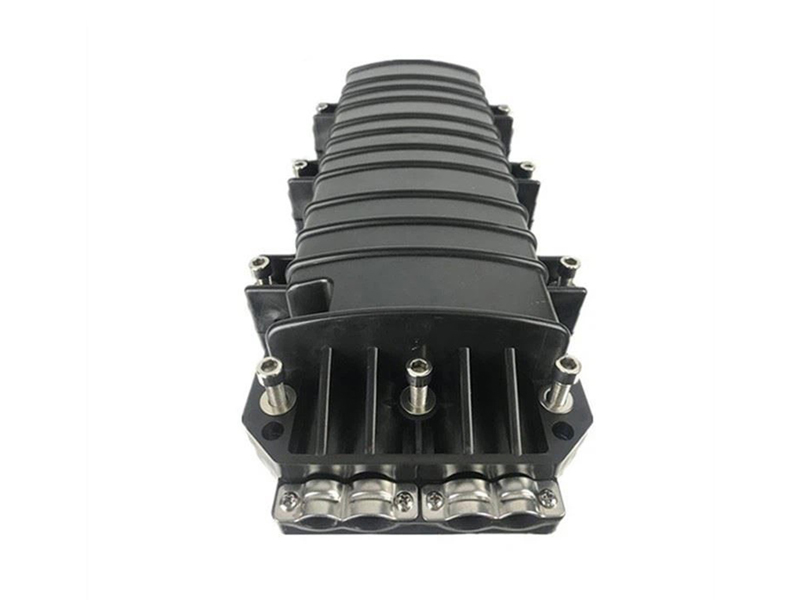

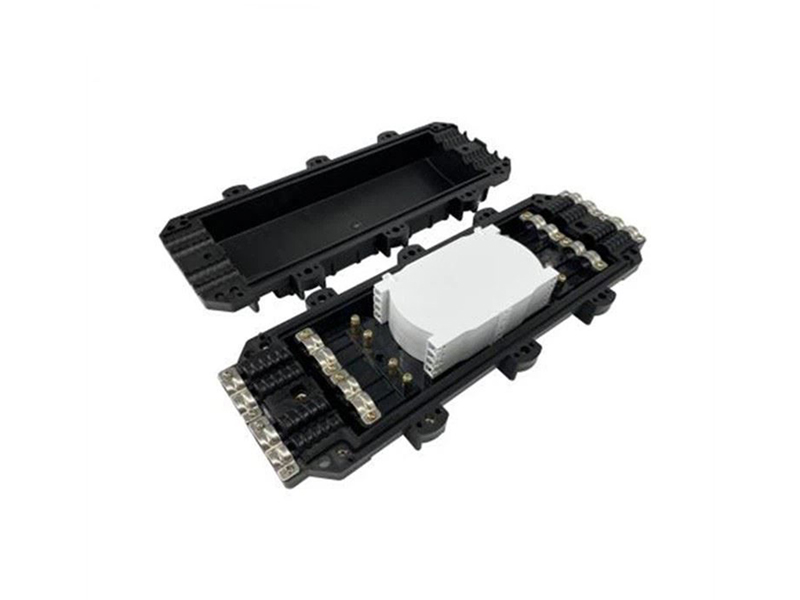

Pictures for reference:
4 Package Information
4.1 Plastic bag size:650*350mm
4.2 Inner box with single corrugated size: 470*205*135mm
4.3 Carton with double corrugated size:690*485*425mm(10PCS/Box)
4.4 Weight per carton：25 KG
YOUR VACATION IS HERE
Prepare your network for seamless 5G deployment. Get direct access to factory pricing, custom OEM/0DM solutions, and rapid prototyping,
Let's Build Your Optical Network, Kindly have a chat with our sales experts!
Get A Free Quote
Related Products
Alteoptic is one of the main equipment for user access points, applied for protective connection and distribution between two or more cables. The primary function is to connect distribution cable and indoor cable in the open air.
View More

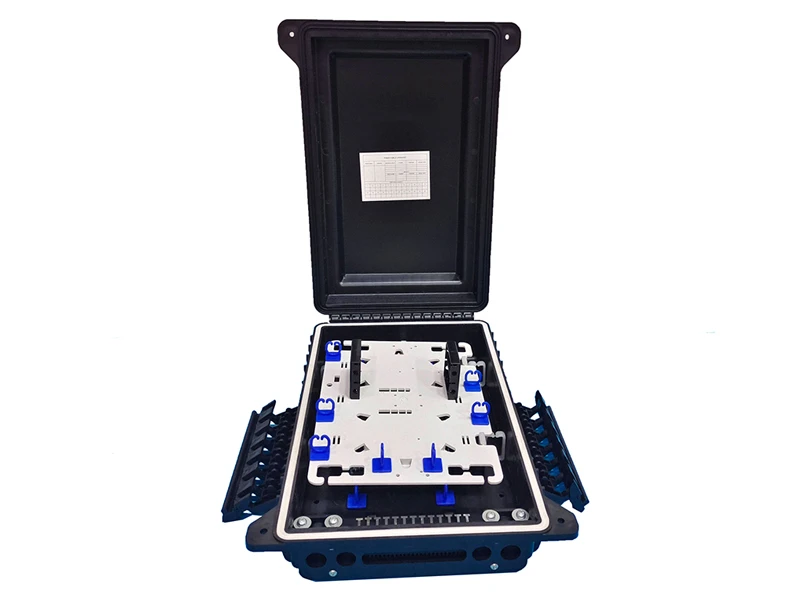

Fiber optical distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTH communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solidprotection and management for the FTTH network building.
