The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
1 Overview

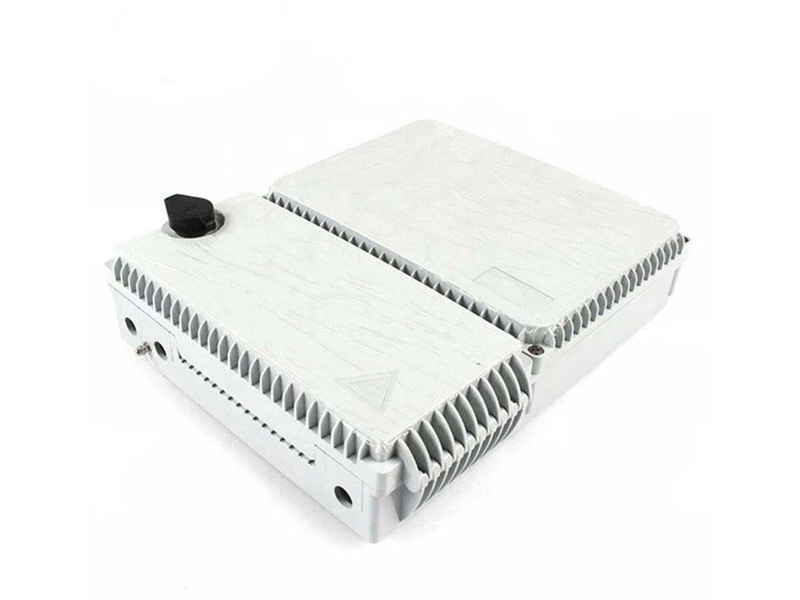

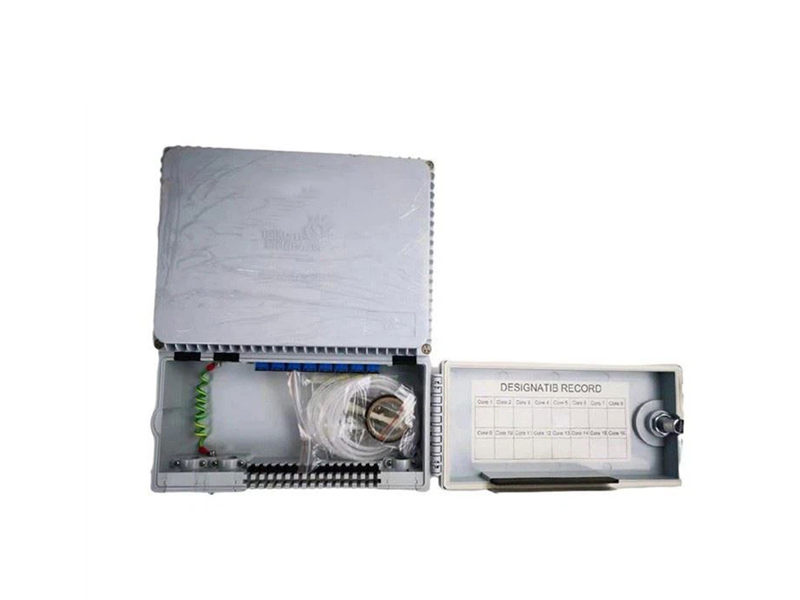

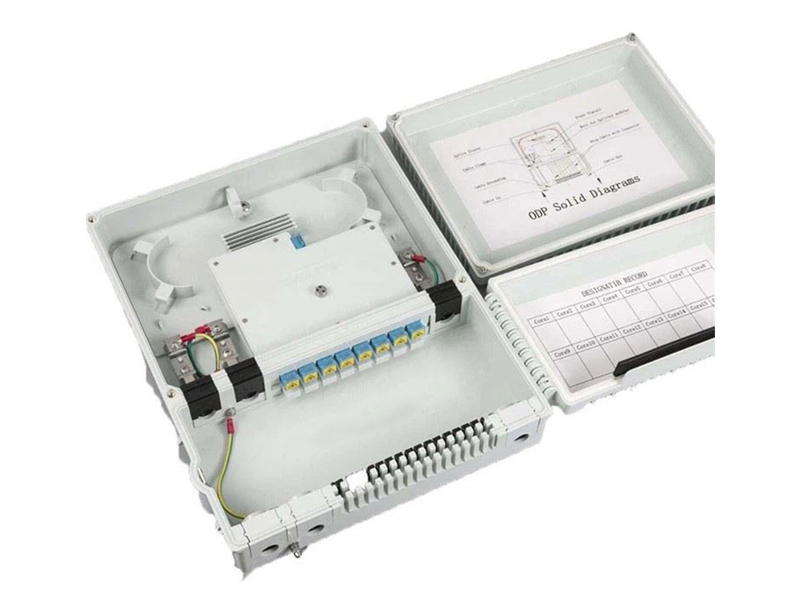

Alteoptic Model No. FTB-AT16R-2 can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 16 users requirements. It can help splicing, splitting, storage and management with suitable space.
2 Quick Details
|
Model No. |
FTB-AT16R-2 |
Color |
Grey |
|
Capacity |
16 cores |
Protection Level |
IP65 |
|
Material |
PC+ABS, ABS |
Flame retardant performance |
Non-flame retardant |
|
Dimension(L*W*D,MM) |
343*292*97 |
Splitter |
Can be with 2x1:8 Module Type Splitter |
3 Features

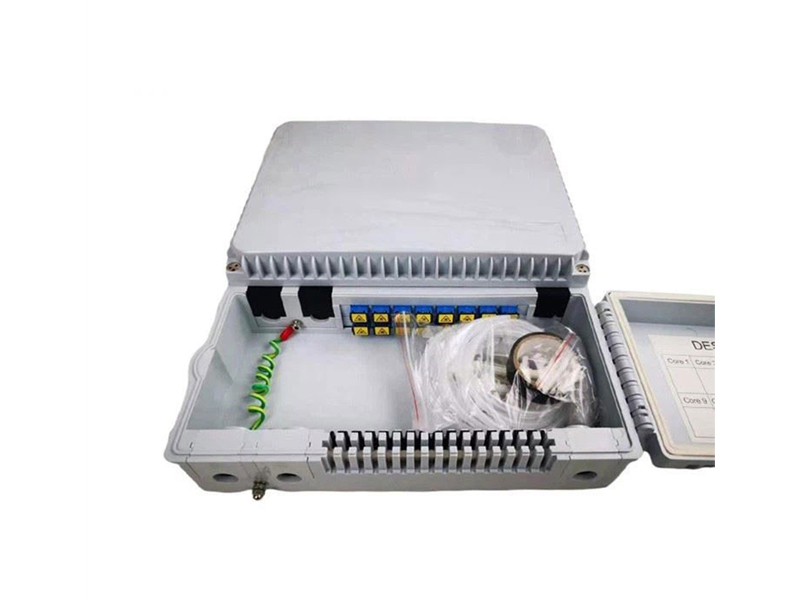

* Total enclosed structure.
* Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging,protection level up to IP65.
* Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
* Cable,pigtails,patch cords are running through own path without disturbing each other,cassette type SC adaptor installation,easy maintenance.
* Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
* Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
4 Application
Fiber FTTH access network.
Telecommunication FDB Networks
Optical CATV Networks
Data communications FDP Networks
Local Aera NAP Joint Networks.
5、Specification：
1、Environmental requirement
Working temperature：-40℃～+85℃
Relative humidity：≤85%（+30℃）
Atmospheric pressure：70KPa～106Kpa
2、Main technical datasheet
Insertion loss：≤0.2dB
UPC return loss：≥50dB
APC return loss：≥60dB
Life of insertion and extraction：＞1000 times
3、Thunder-proof technical datasheet
The grounding device is isolated with the cabinet, isolation resistance is less than 2MΩ/500V（DC）；
IR≥2MΩ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V（DC）/min, no puncture，no flashover；U≥3000V
4、Configuration table：
Table 1 Model and configuration
|
Model |
Description |
Size（Pic 1） |
Max Capacity |
Installation Size(Pic 2） |
Into the largest cable diameter |
Cable ways |
|
|
A*B*C(mm) |
SC |
PLC |
D*E (mm) |
||||
|
FTB-16R |
Distribution Box |
343*281*90 |
16 |
16（SC) |
89.5*187 |
15mm |
Not cut-joint / cut-joint |

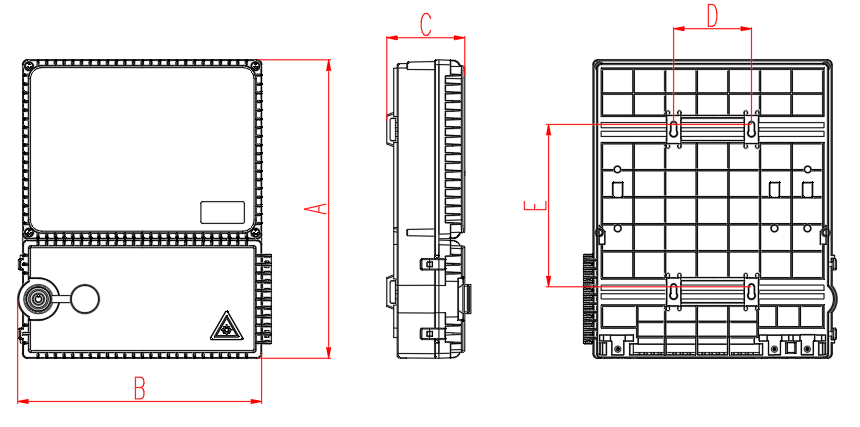

Pic 1 Box Size Pic 2 Installation Size
5、Product cable ways：

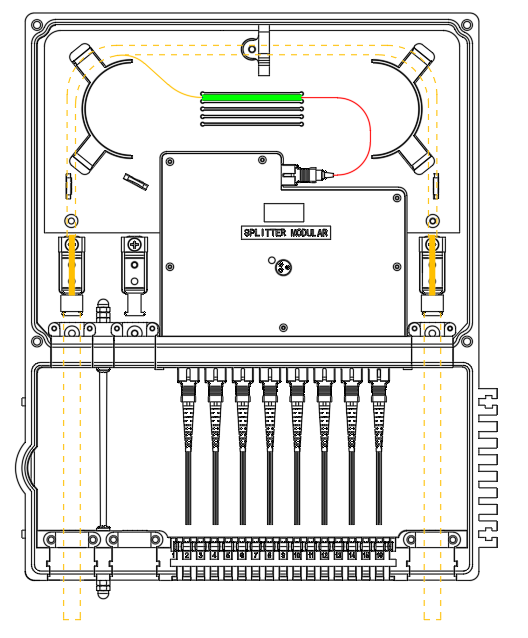

Pic 4 Cable ways
6、Installation：

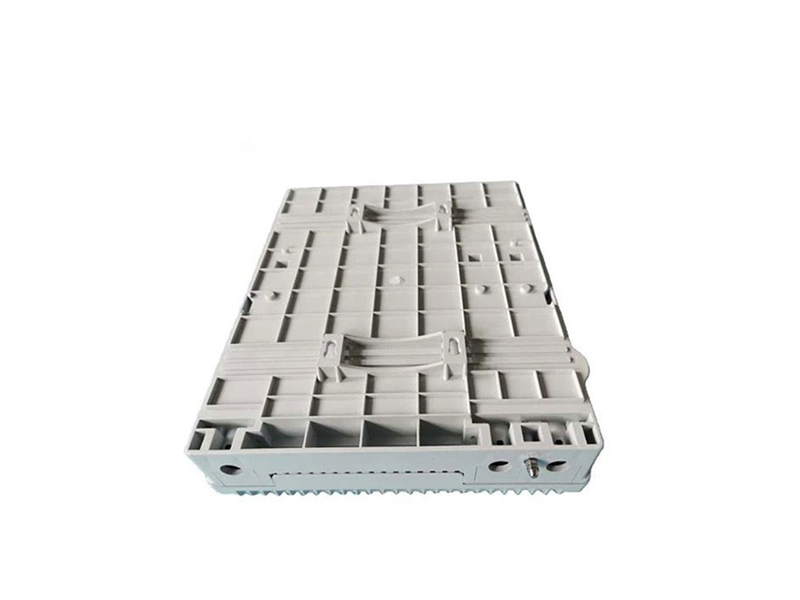

1．Wall-mounted installation

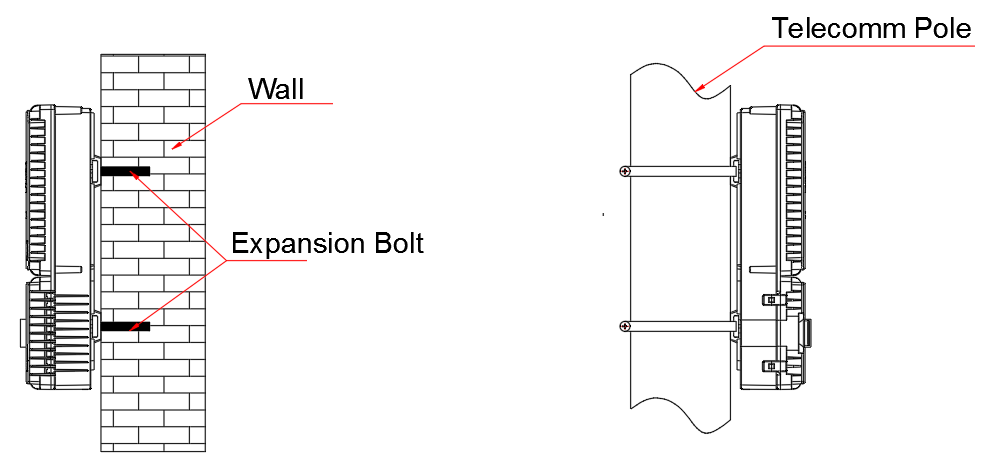

Drill 4 holes over the wall based on the size in table 1，place the expansion bolt Φ7.5*40，place the box to match up the holes and use bolt to fasten。(Pic 4)
2．Pole-mounted installation
Fix 1 set of the easy pole ring to the telecom pole .（Pic 5）
Pic 5 Wall mounted installation Pic 5 Pole ring installation
7、Accessories：
1. Users' Manual*1。
2. Key*1。
3. Accessories Bag * 1
5. Easy pole ring*2（Option）
