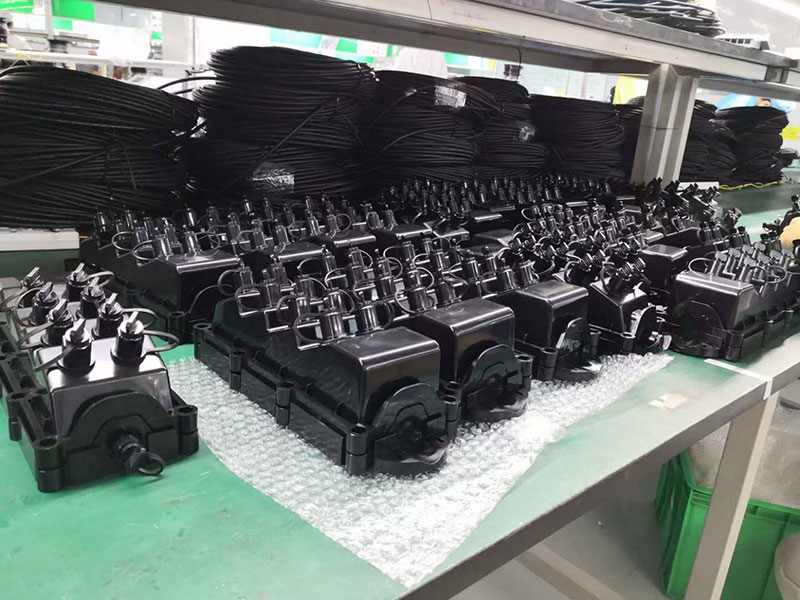

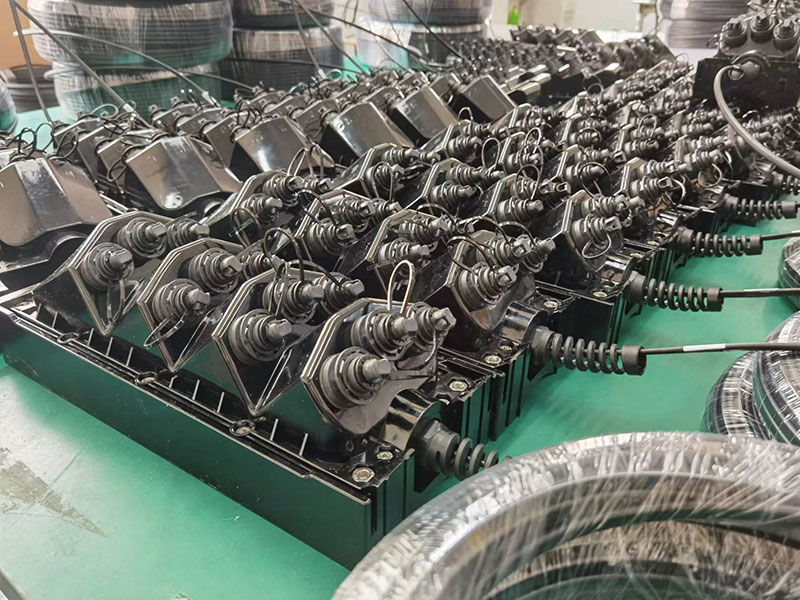

Multi Service Terminal (MST) Closure
Description
The Multi Service Terminal incorporates hardened adapters and are fully OptiTap compatible. Allowing for rapid tower and FTTH deployments, the MSTs are fully IP68 rated to fully withstand the rigors of outdoor deployment in all environments. Each MST comes with easy deployment mount allowing wall mounting or for pole mounting.
Features
u Each box can be fully assembled to reduce the need for opening and opening the field in the field.
u Hardened connectors are factory-terminated and environmentally sealed for use in optical drop cable deployments.
u Plug-and-play adapter ports ensure rapid cable installment in the outside plant access section of the network.
u Multi-port Service Terminals incorporate hardened connector technology that is designed to withstand the rugged outside plant environment.
u Factory terminated IP68 rated, high quality, high performance connectors.

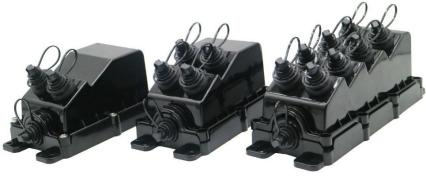

u Flexible choice of ports: 2, 4, 6, 8 terminals are available.
u Kind of mounting bracket allowing for a wide range of mount options.
Specification
|
Port |
2, 4, 5, 6, 8, 12 |
|
Product Type |
Access Terminal |
|
IP Rate |
IP68 |
|
Components Compliant |
RoHs |
|
Operating Temperature |
-40 to +85℃ |
|
Adapter |
OptiTap SC, OptiTap LC Duplex, OptiTap MPO |
|
Entrance |
Cable gland or OptiTap adapter |
|
Feed Cable |
1, 2, 4, 6, 8 cores for options |
|
Feed Cable Length |
Customized |
|
Stub Type |
Stub Tail |
|
Mounting Method |
Hand-hole, Pedestal, Pole, Strand, Aerial |
|
Cable Type |
Flat drop cable |
|
Cable Size |
3.0x4.5mm; 4x7mm; 4.5x8. 1mm; 4.5x9.8mm |
|
Cable Quantity |
1 |
|
Cable Stub Length |
50meter to customized |
|
Attenuation, maximum |
0.30 dB/km @ 1550 nm | 0.40 dB/km @ 1310 nm |
|
Directivity, minimum |
60 dB |
|
Wavelength Range |
1260–1635 nm |
|
Insertion Loss, Terminal Connector, max |
0.4dB |
|
Return Loss, Connector, minimum |
65dB |
|
Item |
Dimension |
|
2Port |
210x111x78mm |
|
4Port |
210x111x78mm |
|
6Port |
210x111x78mm or 282x111x77.5mm |
|
8Port |
282x111x77.5mm |
Technical Box Drawing

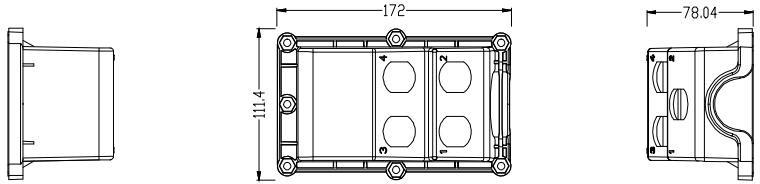

4Port Drawing

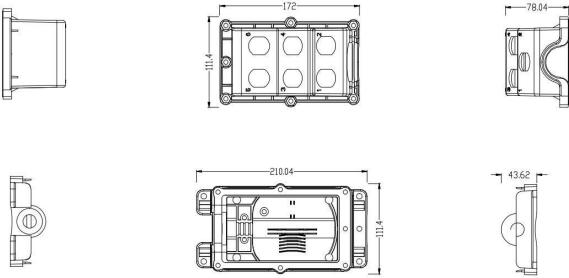

6Port Drawing

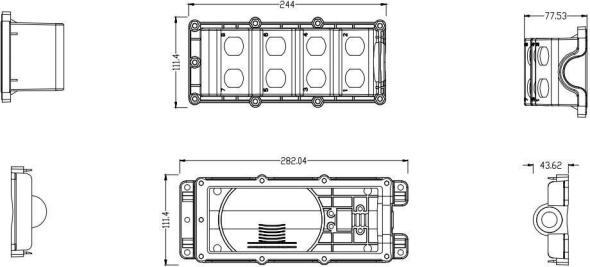

8Port Drawing

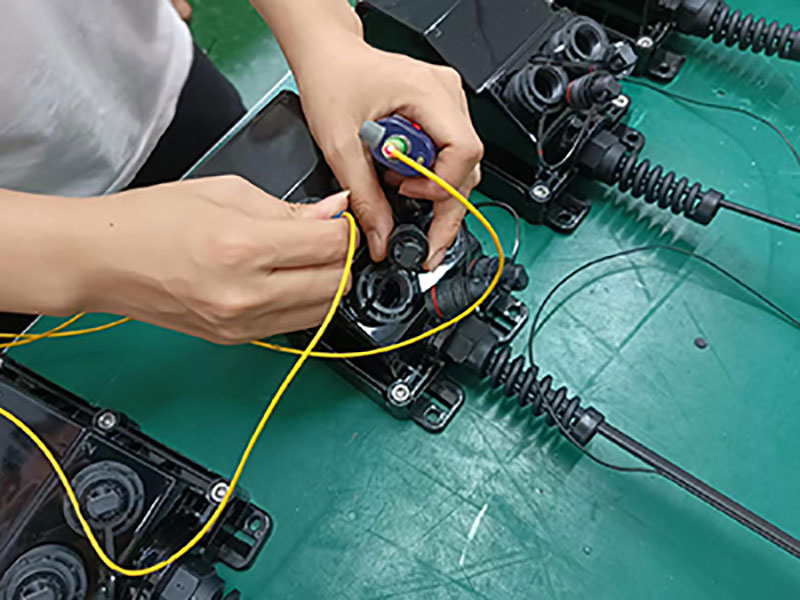

Air Tightness Test
Multiport Service Terminal (MST) is fully assembled and sealed in factory. Each MST fiber optic terminal box undergoes an air tightness test to determine whether it meets the IP68 rating.Determining the sealing performance of MST fiber optic terminal boxes by detecting air leakage values is a fast and efficient testing method. All Alteoptic’s MST fiber optic terminal boxes are 100% tested for sealing performance.
Test Method:
7 Days, 1.3meter water head
No water Intrusion
Freeze-Thaw Test
To verify long-term reliability in underground deployment environments, Alteoptic MST and hardened drop cable assemblies were tested under repeated freeze-thaw conditions in accordance with GR-771-Core 5.4.4.1. After 10 cycles at -5°C under wet conditions, the products showed no water intrusion and maintained stable optical performance with insertion loss variation within 0.05 dB. This demonstrates excellent sealing integrity and dependable signal transmission in harsh winter applications such as handholes, manholes, and vaults
PEI(polyetherimide) Overview:
PEI(polyetherimide) has excellent mechanical properties, electrical insulation properties, radiation resistance, high and low temperature resistance and wear resistance, and can pass through microwave. PEl has excellent high temperature mechanical properties and wear resistance, so it can be used in the manufacture of water transmission pipe steering valve parts. Due to its high strength, flexibility and heat resistance,PEl is an excellent coating and film forming material that can form coatings and films suitable for the electronics industry. Continuous working temperature range is large (-200--170 ℃ long-term work), glass transition temperature and thermal denaturation temperature close, melting point up to 330 ℃ in low temperature/high temperature still maintain high mechanical strength, high hardness, high creep resistance, good toughness outstanding resistance to precipitation (suitable for use in the use of steam disinfection sterilization room); Not easy to breed bacteria, often used in food processing industry high radiation resistance, can pass through infrared light and microwave radiation; Good electrical insulation, good electroplating performance Wide temperature range (-200--170 ℃) to maintain a stable dielectric constant and loss factor can not pass the SMT reflow soldering test.
More Options
2 Port MST BOX install with 1x2 PLC Splitter
4 Port MST BOX install with 1x4 PLC Splitter
4Port MST TAP with 4ct Feed Flat Drop Cable, Branch out 4 pigtails inside
4Port MST Closure with 1F Feed Flat Drop Cable Pigtail and 1x4 Splitter
5Port Multi Service Terminal Box load 1x2 FBT Splitter & 1x4 Splitter
6Port Multi Service Terminal Box Cable Gland Entrance
6Port Multi Service Terminal Box OptiTap Connector as Entrance
6Port Multi Service Terminal Box With 6cores Flat Drop Cable Tail
6Port OptiTap Box with 6fibers Flat Drop Cable, Branch out 6 pigtails inside
8Port MST Box OptiTap Entrance, 1x8 Splitter Inside

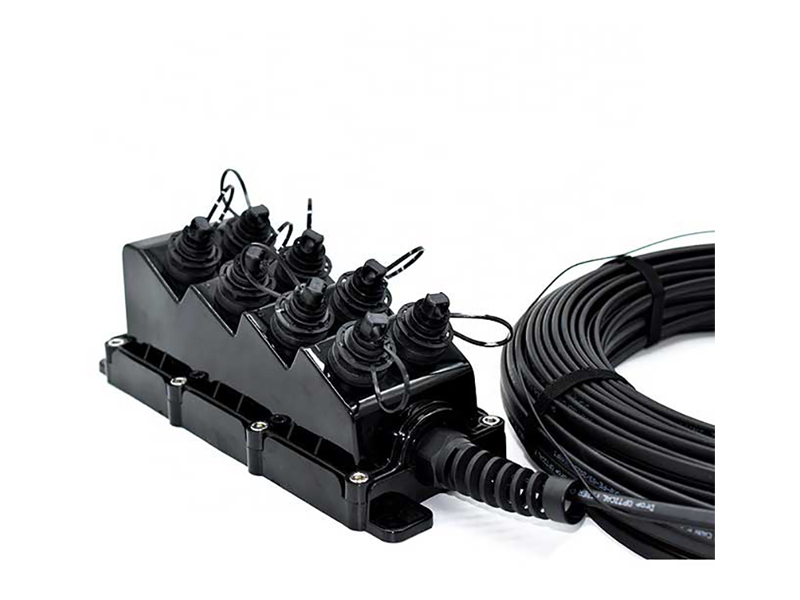

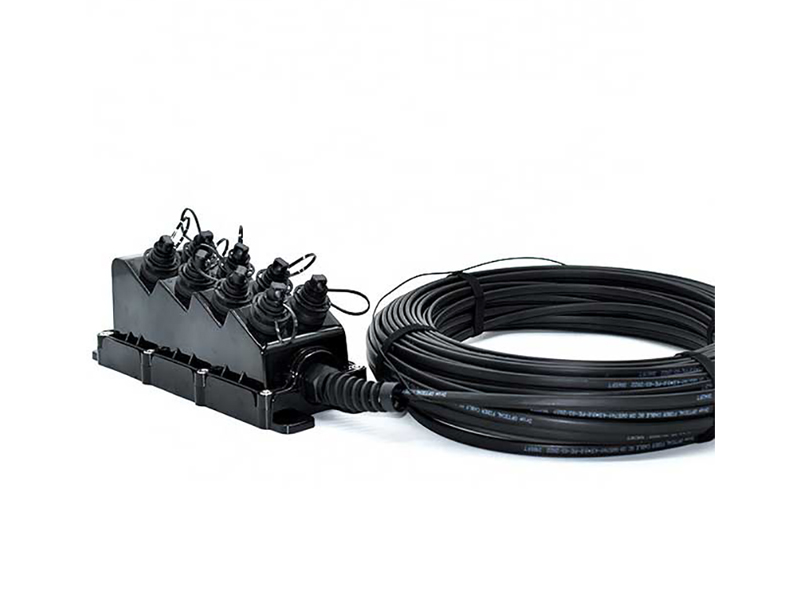

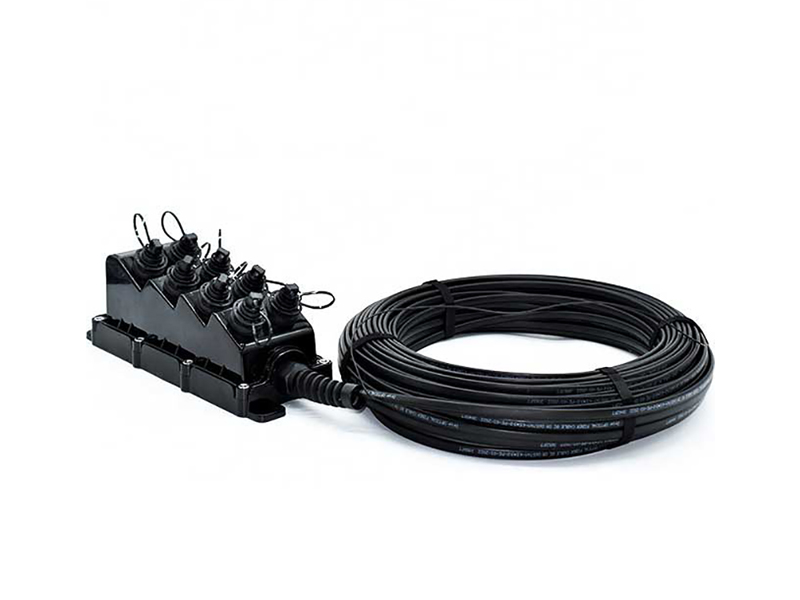

8Port Multi Service Terminal Box with 8ct Feed Flat Drop Cable Pigtail
Branch out 8 pigtails inside
8Port MST Box with 1F Feed Drop 1x8 Splitter Inside loaded
4Port MST Box Fully Connectorized Indexing Chain Solution
8Port MST Box Fully Connectorized Indexing Chain Solution
